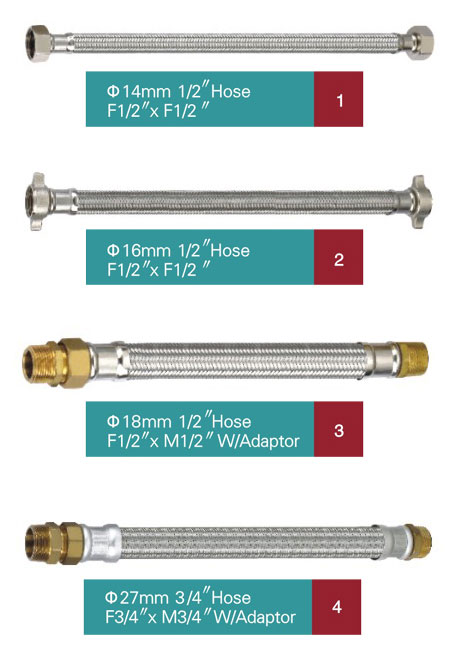

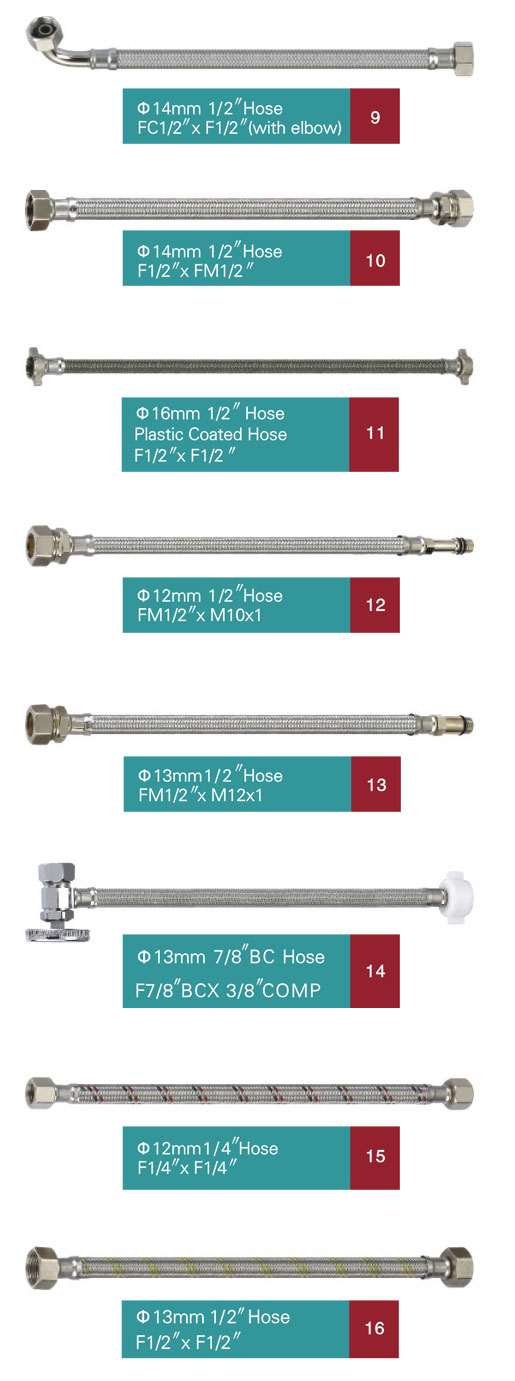

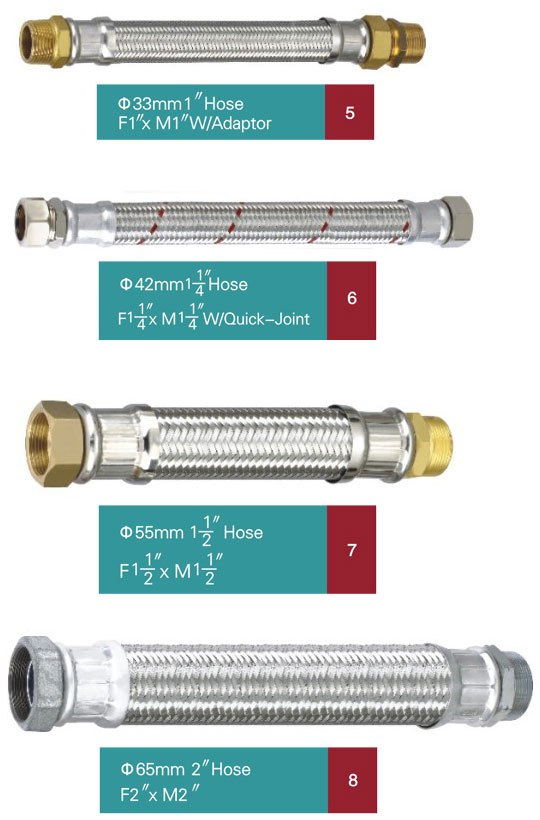

Braided Flexible Hoses
|

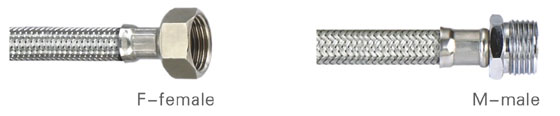

F-female |
M-male |
ID |
OD |
Spindles–wire |
|
1/2” |
1/2” |
φ6 – 13mm |
φ9 – 22mm |
24 / 6-8 |
|
3/8” |
3/8” |
φ6 – 13mm |
φ9 – 22mm |
24 / 6-8 |
|
7/8” |
- |
φ6 – 13mm |
φ9 – 22mm |
24 / 6-8 |
|
5/8” |
- |
φ6 – 13mm |
φ9 – 22mm |
24 / 6-8 |
|
1/4” |
1/4” |
φ6 – 9mm |
φ9 – 13mm |
24 / 6-8 |
|
1 1/8” |
1 1/8” |
φ6 – 10mm |
φ9 – 15mm |
24 / 6-8 |
|
9/16” |
9/16” |
φ6 – 10mm |
φ9 – 15mm |
24 / 6-8 |
|
1” |
1” |
φ15 – 25mm |
φ18 – 35mm |
32 / 7-10 |
|
1 1/4” |
1 1/4” |
φ30 – 33mm |
φ40 – 42mm |
36 / 8-12 |
|
1 1/2 |
1 1/2 |
φ35m |
φ55mm |
36 / 10-15 |
|
2” |
2” |
φ45m |
φ65mm |
48 /12-15 |
|
… |
… |
… |
… |
… |
| Classification | Operating Pressure | Test Pressure | Burst Pressure | |||
| (MPa) | (bar) | (MPa) | (bar) | (MPa) | (bar) | |
| Stainless Steel Braided Hose | 1.6 | 16 | 3.2 | 32 | 6.4 | 64 |
- Bookmark :
- Digg
- del.icio.us
- Stumbleupon
- Redit it

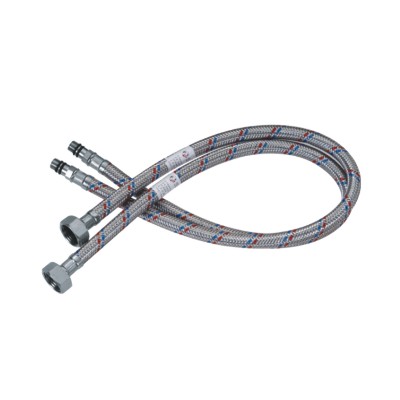

Model No. F01RB – M10*F1/2″ Braided flexible hoses.
Braided Flexible Metal Hose is used as water supply line for faucet or mixer taps.
Stainless Steel or Aluminium Wire Braided Flexible Hose with Red and Blue Line;
Inner pipe: Rubber, Nature rubber or EPDM(optional);
Stainless Steel or Aluminium Wire Braided Flexible Hose;
Inner pipe: Rubber, Nature rubber or EPDM(optional);
F1/2″ Brass Nut and M10*1 Brass Connection Nickel plated;
Brass Insert Original Color;
NBR/EPDM O-ring and Gasket;
Working Temperature:Max 100 Degree;
Working Pressure:Max 20 Bar.
- Bookmark :
- Digg
- del.icio.us
- Stumbleupon
- Redit it
Super Flexible Metal Braided Hose avialable in various sizes. Order various braided flexible metal hoses from China Sanliv. Braided flexible metal hoses packing in details as below:

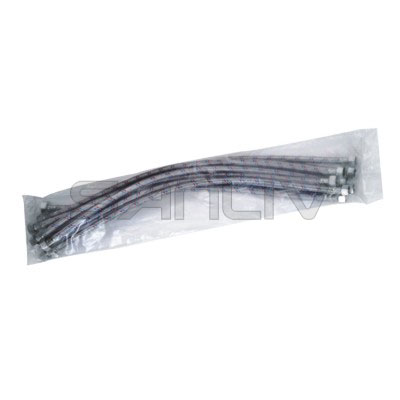

| Packages | 2PCS/POLYBAG 200PCS/CTN for M10*F1/2″ or M10*F3/8″ | ||||||
| 10PCS/POLYBAG 200PCS/CTN (Standard export packing) | |||||||
| ackage Dimensions For 1/2″ | 30CM: 32*35*21CM (200PCS/CTN) | ||||||
| 40CM: 42*35*21CM (200PCS/CTN) | |||||||
| 50CM: 52*35*21CM (200PCS/CTN) | |||||||
| 80CM: 58*35*21CM (100PCS/CTN) | |||||||
| Package Dimensions For 3/4″ | 30CM: 33*38*26CM (200PCS/CTN) | ||||||
| 40CM: 43*38*26CM (200PCS/CTN) | |||||||
| 50CM: 53*38*26CM (200PCS/CTN) | |||||||
| 80CM: 59*38*21CM (100PCS/CTN) | |||||||

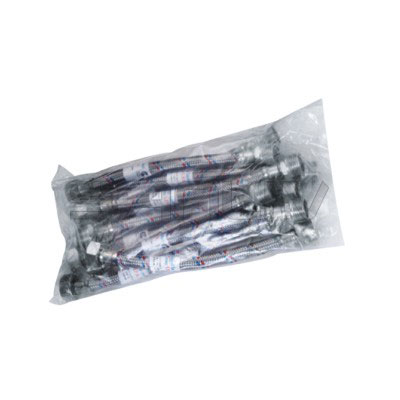

| Packing: | 10 PCS Enclose A Poly Bag |
|---|---|
| Standard: | F3/8″, F1/2″, F3/4″, F7/8″, F1″, M3/8″, M1/2″ |
| Trademark: | SANLIV |
| Origin: | China |
| Min. Order: | 2000pcs |
- Bookmark :
- Digg
- del.icio.us
- Stumbleupon
- Redit it

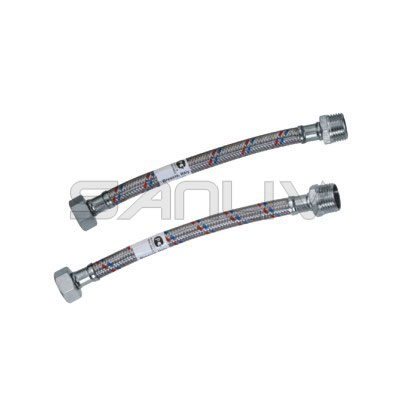

Flexible metal hose M1/2″-F1/2″.
Used as a connection piece for high water pressure Stainless Steel Flexible Hose.
Stainless Steel or Aluminium Wire Braided Flexible Hose with Red and Blue Line;
Inner pipe: Rubber, Nature rubber or EPDM(optional);
F1/2″ Brass Nut and M10*1 Brass Connection Nickel plated;
Brass Insert Original Color;
NBR/EPDM O-ring and Gasket;
Working Temperature:Max 100 Degree;
Working Pressure:Max 30 Bar.
- Bookmark :
- Digg
- del.icio.us
- Stumbleupon
- Redit it
China Sanliv flexible hose manufacturer & exporter, we supply Braided Flexible Metal Hose with various specifications. Find best design of Flexible Metal Hose at Sanliv Braided Flexible Metal Hose Series.
- Bookmark :
- Digg
- del.icio.us
- Stumbleupon
- Redit it
Flexible water supply hoses F08RB F3/8″-F1/2″.
Used as a connection piece for high water pressure Stainless Steel Flexible Hose.
Stainless Steel or Aluminium Wire Braided Flexible Hose with Red and Blue Line;
Inner pipe: Rubber, Nature rubber or EPDM(optional);
F1/2″ Brass Nut and M10*1 Brass Connection Nickel plated;
Brass Insert Original Color;
NBR/EPDM O-ring and Gasket;
Working Temperature:Max 100 Degree;
Working Pressure:Max 30 Bar.
- Bookmark :
- Digg
- del.icio.us
- Stumbleupon
- Redit it
Flexible Hoses for Faucets M10*F1/2″.
This hosepipe is a flexible tube used to carry water. Stainless steel braided Flexible Metal Hoses for kitchen sink faucet, water supply flexible hoses for lavatory faucet or bathroom wash basin mixer taps.
Stainless Steel or Aluminium Wire Braided Flexible Hose;
Inner pipe: Rubber, Nature rubber or EPDM(optional);
F1/2″ Brass Nut and M10*1 Brass Connection Nickel plated;
Brass Insert Original Color;
NBR/EPDM O-ring and Gasket;
Working Temperature:Max 100 Degree;
Working Pressure:Max 30 Bar.
- Bookmark :
- Digg
- del.icio.us
- Stumbleupon
- Redit it
F07 Braided Flexible Metal Hoses – F1/2″-F1/2″.
FLEXIBLE HOSE IN STAINLESS STEEL 8 WIRES BRAIDED Ø mm 12-14, internal in EPDM
Specification: F1/2″-F1/2″.
Dimensions: cm 15 20 25 30 35 35 50 60 80 100 120 150 up to you.
Stainless Steel Braided Flexible Hose for water supply.
Maximum water pressure: 60 bars.
Suitable temperature: between -20℃ and 120℃.
Other lengths & connector combinations are available on request.
Find High Pressure braided flexible stainless steel hoses online. Sanliv is a leading manufacturer factory of flexible metallic braided hose in China.
