Bathroom Sink Drain P-Trap PT101

Installing a Bathroom Sink P-trap photo
Model No. PT101 – Brass Bathroom Sink Drain P-Trap Chrome Plated.

Sanliv Bathroom Sink or Wash Basin Drain P-Trap 1-1/4 inch, chrome plated brass, rosette chrome plated diameter 65 mm, for wash basin, with outlet bend 32 mm x 200 mm, in acc. to DIN EN 19 545 / DIN EN 274, adjustable drain pipe up to 20 – 70 mm, for wall connection ≤ 250 mm.

Sanliv Kitchen Faucets and Bathroom Fixtures:
  • kitchen p-trap
  • P-TRAP
  • SINK TRAP DIMENSIONS
  • trapless sink drain
  • sink traps

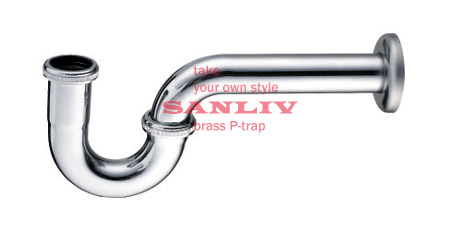

P-trap Less Cleanout Brass Tubular

Bathroom Sink P-trap Less Cleanout Brass Tubular PT102

Model No. PT102, Sink P-trap Drain Pipe Less Cleanout Brass Tubular Chrome plated.

P-trap Less Cleanout Brass Tubular for Bathroom or Kitchen Sink Drain Waste, Chrome/Brass Color/Finish, For Use With Wall Drain, Slip Connection, Includes Slip Nuts And Washer.

SIZE – GAUGE
SIZE – GAUGE
1-1/4″ – 22 GA
1-1/2″ – 22 GA
1-1/4″ – 20 GA
1-1/2″ – 20 GA
1-1/4″ – 17 GA
1-1/2″ – 17 GA

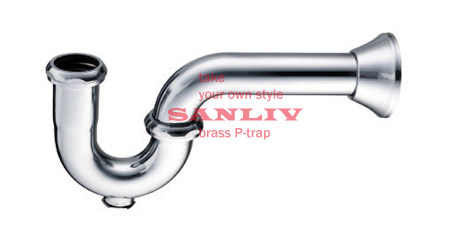

Bathroom Sink P-trap With Cleanout

bathroom sink p-trap drain pipe with cleanout

Model No. PT103 – Brass Bathroom Sink P-trap Pipe to Wall With Clean-out in Chrome Plating.

Brass Repair P-Trap With Cleanout, Material of Construction Brass, Color/Finish Chrome, Connection Slip Joint Inlet, IPS Outlet, Standards Meets European Norm.

SIZE
GAUGE
1-1/2″
22 GA
1-1/2″
20 GA
1-1/2″
17 GA
Sanliv Kitchen Faucets and Bathroom Fixtures:
  • bathroom sink leak at cleanout
  • cleanout bathroom

Basin Bottle Trap Siphon Drain PT105

New Bottle T-Trap Bathroom Sink Pipe Drain Chrome PT105

Model No. PT105 – Wash Basin Bottle Trap Waste Siphon Drain.

Chrome bottle trap for use with exposed basin waste systems, with 1-1/4″ connections, approx 300mm long supplied with chrome extension pipe and wall cover plate.
Chrome plated, Strong Brass Body, Complete with fittings.
Universal standard size: 1-1/4 inch connections, standard 300mm length.
Adjustable height and adjustable outlet: Minimum 50mm Maximum 120mm.
Any special sizes are available if your order quantity is over 500 pieces.

Sanliv Kitchen Faucets and Bathroom Fixtures:
  • draine chino
  • wash basin bottle trap arrangment

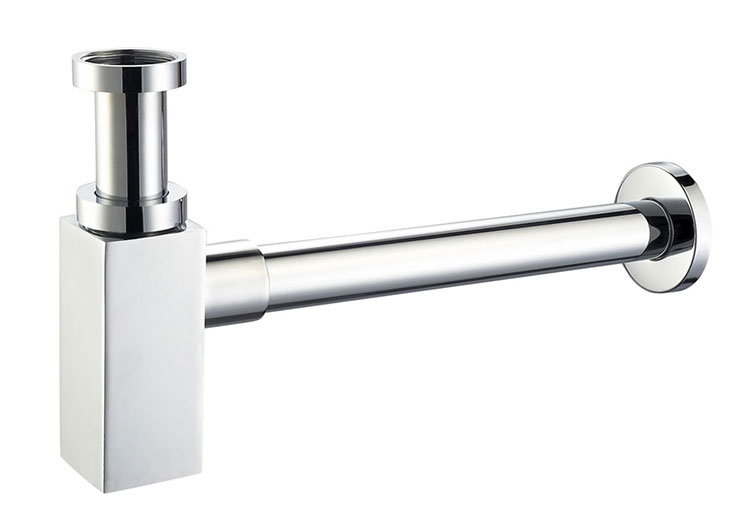

Square Basin Bottle Waste Trap PT106

Square Bottle Trap Extension And Flange chrome finish PT106
Model NO. PT106 – Bathroom Chrome Square Basin Tap Bottle Waste Trap.
Square Chrome Bottle Trap For use with wall mounted basins Square design Chrome 1¼” standard BSP thread for basin wastes High quality and easy to install. This 1¼ inch Square minimal Bottle Trap and Extension Pipe (300 mm) manufactured by Sanliv would be an excellent choice for any basin.
Universal standard size: 1-1/4″ 120mm inlet 300mm outlet.
High quality chrome plated brass body, complete with fittings. Adjustable height and adjustable outlet. Any special sizes are available if your order quantity is over 500 pieces.

Sanliv Kitchen Faucets and Bathroom Fixtures:
  • square basin waste

Chrome Sink Bottle Trap Waste PT107

Chrome Basin Sink Bottle Trap Waste PT107
Model No. PT107 – Chrome Basin Sink Bottle Trap Waste.

Sanliv Adjustable Bathroom Sink Basin Bottle Trap Waste made with the pop up waste connection 1-1/4 inch, chrome plated brass. Sanliv Chrome Sink Bottle Trap Waste PT107 specifications:
1-1/4″ 80mm inlet 200mm Outlet.
1-1/4″ 120mm inlet 250mm Outlet.
Any special sizes are available if your order quantity is over 500 pieces.

Sanliv Kitchen Faucets and Bathroom Fixtures:
  • sink bottle trap
  • chrome sink trap
  • chrome bottle waste trap

Brass Basin Bottle Trap Waste PT108

Sanliv Bathroom Basin Bottle Trap Waste PT108

Model No. PT108, Adjustable Bathroom Sink Basin Bottle Trap Waste.
Sanliv Adjustable Bathroom Sink Basin Bottle Trap Waste made with the pop up waste connection 1″ or 1-1/4 inch, chrome plated brass, rosette chrome plated diameter 65 mm. P-trap specifications:

  • 1″ 80mm Inlet 200mm Outlet
  • 1″ 80mm Inlet 250mm Outlet
  • 1-1/4″ 80mm Inlet 200mm Outlet
  • 1-1/4″ 120mm Inlet 250mm Outlet

Any special sizes are available if your order quantity is over 500 pieces.

Brass P-Trap With Cleanout Chrome PT109

Brass P-Trap With Cleanout Chrome PT109

Model No. PT109, Adjustable Brass P-Trap With Cleanout in Chrome Finishing.
Sanliv Adjustable P-trap wash basin outlet, with the pop up waste connection 1″ or 1-1/4 inch, chrome plated brass, rosette chrome plated diameter 65 mm. P-trap specifications:

  1. 1″ 80mm lnlet 200mm Outlet
  2. 1″ 80mm lnlet 250mm Outlet
  3. 1-1/4″ 80mm lnlet 200mm Outlet
  4. 1-1/4″ 80mm lnlet 250mm Outlet

Any special sizes are available if your order quantity is over 500 pieces.

Vessel Sink Pop Up Drain with P-trap PT110

P-trap and Vessel Sink Pop-up Drain Combo PT110
Model No. PT110, Brass P-trap and Vessel Sink Pop-up Drain Combo in Chrome Finishing.
Plumbing drain set includes P-trap and pop-up drain assembly with-out overflow;
Lavatory hardware features a solid brass construction;
Designed to work with any vessel sink, including glass, stone and ceramic (without overflow);
You never need to worry about what waste went into the basin, because of the smart structure of the pipe, you can remove all the waste simply by removing the bottom cap;
Pop-up drain from Sanliv is both practical as well as stylish;
Fits any standard 1.75-inch opening installation;
Rubber gaskets needed for installation of the drain are included;
Available in chrome, satin nickel, polished brass, antique brass, antique copper and oil rubbed bronze finish.

Sanliv Kitchen Faucets and Bathroom Fixtures:
  • pop up drain

Basin Waste Pipe Bottle S-Trap PT111

Chrome Basin Vanity Waste Pipe S Bottle Trap PT111
Model No. PT111 – CHROME Basin Waste Pipe S-Trap Bottle Trap.
Sanliv Chrome Bathroom Basin Vanity Waste Pipe S Bottle Trap features:

  • Made of solid brass, which means it will never rust;
  • Chrome finish, provides a neat stylish looking finish;
  • You never need to worry about what waste went into the basin, because of the smart structure of the pipe, you can remove all the waste simply by removing the bottom cap;
  • Come in 1-1/4″ thread to fit the pop-up waste;
  • The Pipe Connecting To The Floor Comes In 32mm ONLY, But it can fit into 32mm or 40mm Pipe.

Sanliv Wholesale Brass S-Trap Slip Joint for wash basin drain waste. 1-1/4″ S-Trap, Slip-Joint, Less Cleanout Brass Tubular in Chrome finishing. For use with floor drain applications. Includes all nuts and washers necessary for installation.

Sanliv Kitchen Faucets and Bathroom Fixtures:
  • chrome basin waste pipe
  • chrome s trap basin
  • chrome sink waste
